Gathering statistics through Metrics

Concept

layline.io allows capturing information about processed data in metrics. In fact, it provides default metrics that can be gathered during workflow processing in reactive clusters. Next to this, you can add own metric counters for your workflow configuration through Javascript.

How to export layline.io default metrics?

Any data processed through reactive clusters can automatically trigger dropwizard metrics available in layline.io. Getting access to the various metrics requires the following steps:

1. Add layline.io “Extensions Asset” for Prometheus
2. Add mapping of available metrics
3. Include the “Extensions Asset” for “Deployment”

1. Adding layline.io “Extension” for Prometheus

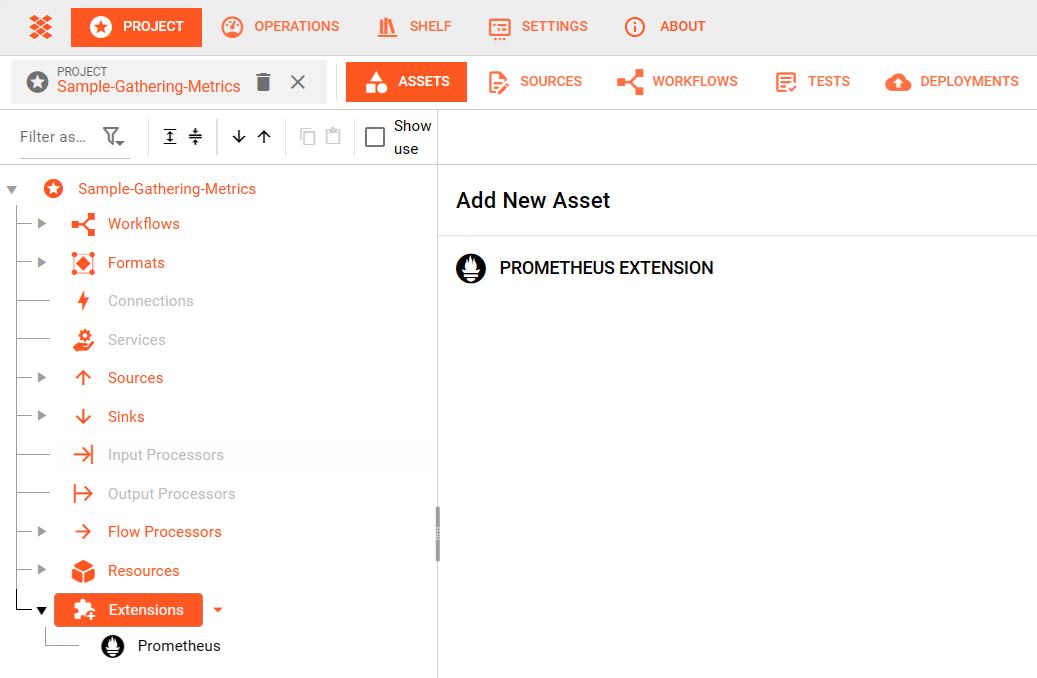

You can find "Extensions" within the "Asset Viewer"

Add a Prometheus Extension by clicking on the available Add new Asset option.

Define Name and Description for the newly created Prometheus Extension.

2. Adding mapping of available metrics

It is mandatory to define at least one mapping entry within the section Prometheus Mapping to enable exports of metric data. Press the +-button to add new mapping entries

(1) Match

Define the regular expression that should match the metric you would like to use for gathering statistics, for instance

• Counter.Source.*.Files

which counts the processed files grouped by <SourceName>

(2) Name

You will be able to find the respective metric matching your regular expression under the here defined name within the export of metric values, for instance io_layline_counter_source_files.

Press the +-button appearing in the Operations column to add Labels for the respective metric. These are made up of a Label-Name (1) and a Label-Value (2) to capture your metric mapping. Labels ease the filtering when using the metric in subsequent evaluations

As usual for regular expression-based mapping, it is important to ensure the right ordering of mapping entries!

Note: layline.io provides a default Prometheus Mapping that can be downloaded from Git here. This allows to import a standard mapping to get a first glance on using metrics. The mapping can be re-configured resp. enhanced to project specific needs at any time.

3. Include the Extension Asset for Deployment

It is necessary to include the Prometheus Extension for the deployment towards the reactive cluster. This can be done in two different approaches:

(1) Assign the created Extension directly to the Project

Choosing this option ensures metrics are exported in any Engine Configuration.

(2) Add the created Extension to your Engine Configurations Asset

Choosing this option allows to decide per Engine Configuration whether metrics exports should be performed.

More Details on Workflow Deployment can be found here.

The next reactive cluster activation of the deployment will generate metrics that can be accessed resp. exported through the url:  http://localhost:5842>/engine/prometheus (pls. exchange localhost and port information according to individual setup). You can view the exported information in your web browser, and it will look something like this:

layline.io default metrics

Metrics available in layline.io are named in a namespace approach using the dot notation. All metric names start with the constant “Counter”. The next level after a dot indicates the layline.io processing entity the metric relates to:

Metric namespace	Usage
Counter.Source	any Source related metrics, e.g. number of input files
Counter.Sink	any Sink related metrics, e.g. number of created output messages
Counter.Workflow	Workflow related statistics
Counter.Service	metrics in conjunction with implemented service functions
Counter.Connection	counter for the number of connection failures

Subsequent individual layers are dynamically created during processing since they depend on the actual configuration implemented for a layline.io project.

Note: Depending on the used assets only some of the counters might be available.

Counter.Source.*.*

The third level in this counter reflects the <sourceName>. Hence, for each of the following elements we will see one counter per configured and processed source

No.	Metric	Usage
1	Counter.Source.<sourceName>.Files	number of files processed by a source
2	Counter.Source.<sourceName>.FilesCommit	number of files committed by a source
3	Counter.Source.<sourceName>.FilesRollback	number of files rolled back by a source
4	Counter.Source.<sourceName>.FilesCancel	number of files cancelled by a source
5	Counter.Source.<sourceName>.Messages	number of messages created by a source
6	Counter.Source<sourceName>.Failures	number of failures for a source
7	Counter.Source.<sourceName>.Backlog	counter for the backlog of a source
8	Counter.Source.<sourceName>.Lag.<topic>.<consumer>.<partition>	counter for the lag of a sourceName’s Kafka topic messages per consumer / topic / partition

Counter.Sink.*.*

The third level in this counter reflects the <sinkName>. Hence, for each of the following elements we will see one counter per configured and processed sink

No.	Metric	Usage
1	Counter.Sink.<sinkName>.Files	number of files processed by a sink
2	Counter.Sink.<sinkName>.FilesCommit	number of files committed by a sink
3	Counter.Sink.<sinkName>.FilesRollback	number of files rolled back by a sink
4	Counter.Sink.<sinkName>.FilesCancel	number of files cancelled by a sink
5	Counter.Sink.<sinkName>.Messages	number of messages created by a sink
6	Counter.Sink.<sinkName>.Failures	number of failures for a sink

Counter.Service.*.*

The third level in this counter reflects the <serviceName>. Hence, for each of the following elements we will see one counter per configured and processed service

No.	Metric	Usage
1	Counter.Service.<serviceName>.Calls	total number of function calls for a service
2	Counter.Service.<serviceName>.Failures	total number of function call failures for a service

One level deeper, counters per <serviceName> and <functionName> are collected

No.	Metric	Usage
3	Counter.Service.<serviceName>.Function.<functionName>.Calls	total number of calls of a specific service function
4	Counter.Service.<serviceName>.Function.<functionName>.Failures	total number of failures of a specific service function

Counter.Workflow.*.*

The third level in this counter reflects the <workflowName>. Hence, for each of the following elements we will see one counter per configured and processing workflow and - where applicable - <workflowInstanceOrdinalNo> (abbreviated in the following as <wfInstance>)

No.	Metric	Usage
1	Counter.Workflow.<workflowName>.Instances	total number of active workflow instances
2	Counter.Workflow.<workflowName>.Input.Messages	number of input messages for all instances of a workflow
3	Counter.Workflow.<workflowName>.<wfInstance>.Restarts	total number of active workflow instance restarts

One level deeper, counters per <workflowName>, <wfInstance> and <processor> are collected

No.	Metric	Usage
4	Counter.Workflow.<workflowName>.Output.<processor>.Messages	number of output messages for all instances of a workflow for an output
5	Counter.Workflow.<workflowName>.<wfInstance>.Output.<processor>.Messages	number of output messages for an output processor of a workflow instance
6	Counter.Workflow.<workflowName>.<wfInstance>.<processor>.<outPortName>.Messages	number of messages for a processor's output port within a workflow instance

Specific counters for Profiling, currently mainly used for layline.io internally purposes, are available for customized dashboards as well:

No.	Metric	Usage
7	Counter.Workflow. <workflowName>.<wfInstance>.<processor>.Profiling.PushMessage.<pushMessageType>	processor specific Profiling.PushMessageType counters; here available pushMessageTypes: - TotalDuration - Events - MinDuration - MaxDuration

Counter.Connection.*.*

The third level in this counter reflects the <connectionName>. Hence, for the following element we will see one counter per configured connection

No.	Metric	Usage
1	Counter.Connection.<connectionName>.Failures	number of connection failures

Configuring Prometheus and Grafana using Docker

A possible approach to create visualization dashboards for the exported metrics could be a Prometheus and Grafana setup using Docker.

We assume Docker is installed on your system. If not, install it first: Developers - Docker .

In case you are not yet running a Prometheus and Grafana Docker setup in your environment you can make use of the following docker-compose.yaml:

docker-compose.laylinemonitoring.yml:

version: '3.8'
networks:
    monitoring:
        driver: bridge
volumes:
    prometheus-data-layline:
        driver: local
    grafana-data-layline:
        driver: local
services:
    prometheus:
        image: prom/prometheus:v2.37.9
        container_name: prometheus_layline
        ports:
            - '9090:9090'
        command:
            - '--config.file=/etc/prometheus/prometheus.yaml'
        volumes:
            - ./config/prometheus.yaml:/etc/prometheus/prometheus.yaml:ro
            - ./data:/prometheus
        restart: unless-stopped
    grafana:
        image: grafana/grafana-oss:latest
        container_name: grafana_layline
        ports:
            - '3000:3000'
        volumes:
            - grafana-data-layline:/var/lib/grafana
        restart: unless-stopped

/config/prometheus.yaml:

global:
  scrape_interval: 15s
scrape_configs:
  - job_name: 'layline'
    scrape_interval: 5s
    static_configs:
      - targets: ['host.docker.internal:5842']
    metrics_path: '/engine/prometheus'

Environments where Prometheus and Grafana are already running, you’ll need to make sure to add layline.io metrics as Target-Endpoints to the Prometheus setup. (pls. adapt host.docker.internal and port information according to individual setup).

You should be able to find the following after having activated the docker instance:

At this stage you can enter your layline.io Prometheus Data Source to your Grafana instance:

The Prometheus server URL needs to reflect the given container-name and port configured for Prometheus service definition in the docker-compose file.

Now, all is settled to start building Dashboards using layline.io metrics!

How to configure user specific metrics?

In case layline.io metrics are not covering the specific needs for collecting statistics about your data processing, it is possible to add user specific metric collections through Javascript.

1. Create and update user specific Metrics

Since Metrics are mostly used to count statistical data, the following section might use Counter as a synonym for Metric.

Creating Metrics in layline.io using Javascript is supported through the available static interface Metrics. Incrementing a counter’s value is performed through the increment method.

let counter;

counter = metrics.getCounter('Counter.User.Name');

counter.increment();

The getCounter() method expects the parameter name. It either creates and returns a new counter-object or simply returns an already existing object for incrementing its value. Any named counter created through this method is unique within the reactive cluster. Issuing getCounter() with the same name a second time references to the same counter and its content. Hence, counters should be created within the onInit() method. In case you need a more flexible approach for creating named counters (for instance: incoming data influences counter naming), make sure to implement an approach to check available counters (during runtime) before calling the metrics.getCounter('Name') method. It is recommended to approach the naming of your counters similar to the principles explained in layline.io default metrics. Hence, any user specific metrics should start with “Counter.User”.

Let’s assume you are processing an input file with Header, Trailer and Detail records. Header and Trailer are discarded as well as specifically flagged Detail records. You would like to count DISCARDED vs. PROCESSED records per recordType through metrics.

The following function creates counters named ‘Counter.User.InputRecordTypes.<recordType>.<state>’ whereby <recordType> and <state> are generic since they are determined during processing based on incoming data. The COUNTER_USER_INPUT_RECORDTYPES array is used to keep track of counters already created.

let COUNTER_USER_INPUT_RECORDTYPES = {
}

...

/**
 * Get the customized Metrics counter Counter.User.InputRecordTypes.<recordType>.<state>
 */
function getCounterInputRecordTypes(recordType, state) {

    let counter = COUNTER_USER_INPUT_RECORDTYPES[recordType + '/' + state];

    if (! counter) {
        counter = metrics.getCounter('Counter.User.InputRecordTypes.' + recordType.toLowerCase() + '.' + state);
        COUNTER_USER_INPUT_RECORDTYPES[recordType + '/' + state] = counter;
    }

    return counter;
}

Within the processing logic the counters are incremented according to their logic:

function onDetail (message) {
    let recordType = message.data.SMPL_IN.RECORD_TYPE;

    if (recordType == 'D') {

        // MAPPING Detail Records only

        if (message.data.SMPL_IN.DESCRIPTION.startsWith("FALSE")){
            getCounterInputRecordTypes(recordType, 'DISCARDED').increment();
            stream.emit(message, DEVNULL_PORT);
        }
        else {
            message.data.SMPL_OUT = {
                RECORD_TYPE : message.data.SMPL_IN.RECORD_TYPE,
                FILE_NAME   : fileName,
                DATE        : message.data.SMPL_IN.DATE,
                DESCRIPTION : message.data.SMPL_IN.DESCRIPTION,
                CREATE_DATE : DateTime.now()
            }
            getCounterInputRecordTypes(recordType, 'PROCESSED').increment();
            stream.emit(message, OUTPUT_PORT);
        }
    }
    else {
        stream.emit(message, DEVNULL_PORT);
        getCounterInputRecordTypes(recordType, 'DISCARDED').increment();
    }
}

Counters that are created would be:

• Counter.User.InputRecordTypes.H.DISCARDED
• Counter.User.InputRecordTypes.T.DISCARDED
• Counter.User.InputRecordTypes.D.DISCARDED
• Counter.User.InputRecordTypes.D.PROCESSED

In the next step these counters need an appropriate mapping to ensure they are exported correctly.

2. Map user specific Metrics in layline.io Prometheus Extension

Mapping user specific Counter is done in the same way as described in Adding mapping of available metrics.

By now you will be able to find your metrics by the configured Name 'io_layline_user_counter_InputRecordTypes_State' in your metrics export.

A sample project to follow up on this topic can be found here (to be available soon)
