Cluster Storage

Global cluster definitions that enable the Configuration Server to connect with Reactive Engine clusters at deployment time.

Purpose

Cluster Storage holds global cluster definitions that are available across all projects in your layline.io installation. These definitions tell the Configuration Server where your Reactive Engine clusters are located and how to connect to them.

Unlike most assets that are project-scoped, cluster definitions are stored at the Configuration Server level because they represent shared infrastructure. When you deploy a project, you select which cluster to target from the global cluster definitions stored here.

Access

Navigate to Settings → Cluster Storage. This section is available to the admin account and to users who hold the Read clusters privilege.

Layout

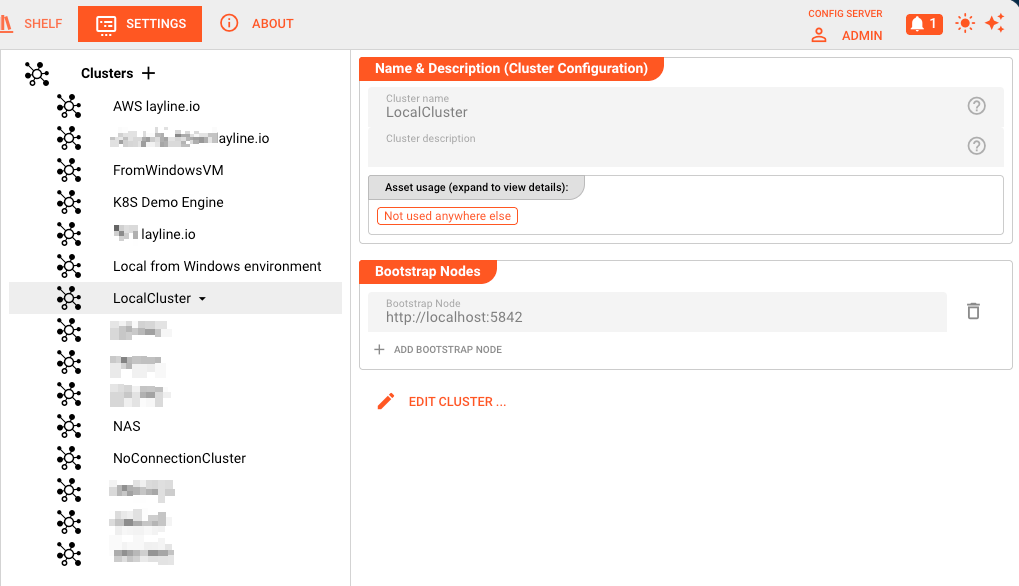

The Cluster Storage page uses a left/right split layout:

Left Panel — Cluster List

The left side displays all globally defined clusters:

• + button — Creates a new cluster definition (requires Write clusters privilege)
• Cluster items — Click to select and view details
• Dropdown menu (▾) — Appears on the selected cluster with a Remove option to delete it

Right Panel — Cluster Details

When you select a cluster, the right panel displays its configuration in read-only mode:

Field	Description
Cluster name	Unique identifier for this cluster definition. Used when selecting clusters in Deployment assets.
Cluster description	Optional free-text description of the cluster's purpose or characteristics.
Bootstrap Nodes	List of node addresses the Configuration Server uses to establish initial contact with the Reactive Engine cluster. Each node is specified as a URL (e.g., http://node1:5842).

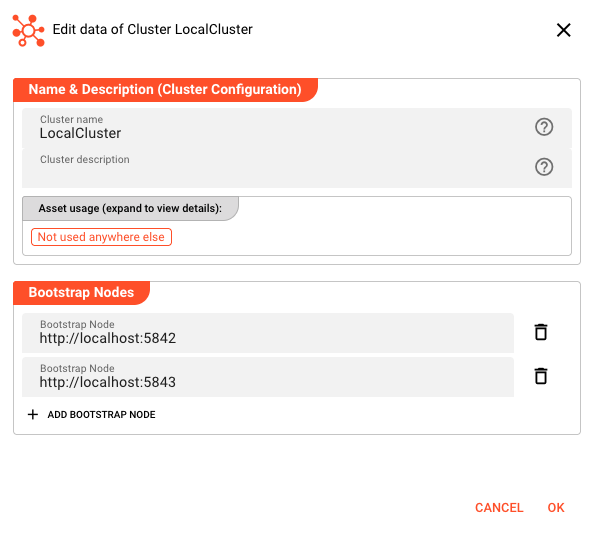

The Edit Cluster... button opens a dialog where you can modify the selected cluster.

Creating and Editing Clusters

Create a New Cluster

1. Click the + button in the left panel
2. The Edit data of Cluster NewCluster dialog opens with:

Field	Description
Cluster name	Unique identifier. Cannot be empty.
Cluster description	Optional description.
Bootstrap Nodes	List of node URLs. Click + Add bootstrap node to add entries. Each node needs a URL in the format protocol://host:port. The default suggestion is http://node:5842 where 5842 is the default Reactive Engine cluster node port.

3. Click OK to save or Cancel to discard

Edit an Existing Cluster

1. Select the cluster in the left panel
2. Click Edit Cluster...
3. Modify fields as needed
4. Click OK to save changes

Remove a Cluster

1. Select the cluster in the left panel
2. Click the ▾ dropdown that appears
3. Select Remove
4. Confirm the deletion in the dialog

warning

Removing a cluster definition does not affect running deployments, but you will not be able to deploy to that cluster until you recreate the definition or select a different cluster.

Bootstrap Node URLs

Bootstrap nodes tell the Configuration Server how to reach the Reactive Engine cluster. Each entry is a URL with the format:

protocol://hostname:port

Component	Description
protocol	http or https depending on your cluster configuration
hostname	DNS name or IP address of a cluster node
port	The cluster node's HTTP port (default: 5842)

You can define multiple bootstrap nodes for high availability. The Configuration Server will use these addresses to discover the full cluster topology. If one node is unavailable, the system can connect through another.

Example bootstrap node list:

• https://prod-node-1.layline.internal:5842
• https://prod-node-2.layline.internal:5842
• https://prod-node-3.layline.internal:5842

Relationship to Deployment Assets

Clusters defined in Cluster Storage appear as options in the Cluster Configuration dropdown within Deployment assets.

When configuring a Deployment asset:

1. In the Composition section, the Cluster Configuration field shows all global clusters from Cluster Storage
2. Select the cluster where you want this deployment to run
3. When you later deploy the project, layline.io uses the bootstrap nodes from this cluster definition to establish the connection

This separation allows:

• Infrastructure teams to define and maintain cluster locations (in Cluster Storage)
• Development teams to reference those clusters by name (in Deployment assets) without managing connection details

Behavior

Scope

• Cluster definitions are global as opposed to local to a specific project
• Changes to a cluster definition affect all Deployment assets that reference it
• Cluster definitions are stored by the Configuration Server, not within project files

Privileges

Action	Required Privilege
View Cluster Storage	Read clusters
Create clusters	Write clusters
Edit clusters	Write clusters
Remove clusters	Write clusters

The + button and Edit Cluster... button are disabled if you don't hold the Write clusters privilege.

Inheritance

Cluster assets support the standard layline.io inheritance model when used within Deployment configurations. The bootstrap node configuration and other properties can be inherited from parent Deployment assets, allowing you to define base cluster configurations and override specific values in child assets.

See Also

• Users & Roles — Managing privileges for cluster configuration access
• Deployment Assets — Using cluster definitions when configuring deployments
• Operations → Cluster — Monitoring and managing running clusters
