Format State

Real-time monitoring of format parsers and serializers — XML, ASN.1, Data Dictionary, HTTP, and more — including their runtime state and initialization health.

Purpose

The Format State view provides visibility into format instances running on your cluster. Formats in layline.io define how messages are parsed (input) and serialized (output). They are used by processors to convert between wire formats and internal message structures. This page lets you monitor format health, inspect configuration, and diagnose initialization issues.

Use Format State to:

• Verify formats are initialized correctly on specific nodes
• Inspect activation details
• Monitor format initialization status and failures
• View format logs for errors and diagnostics
• Restart format instances when needed

Layout

The Format State interface uses a two-tab layout:

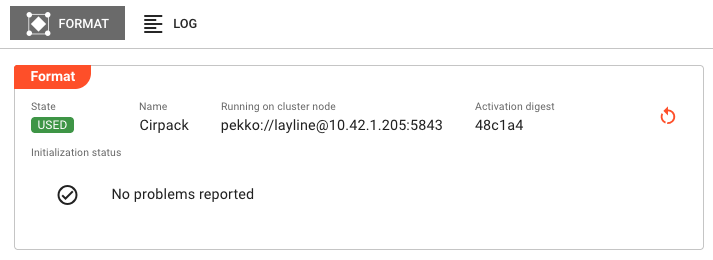

Format Tab

The primary view showing runtime state and format details:

Header Fields:

Field	Description
State	Current execution state as a colored badge (green/red). See Format States for all possible values.
Name	The format name as defined in the project
Running on cluster node	The specific cluster node address where this format instance is executing
Activation digest	Short hash of the deployment activation (first 6 characters; hover for full value). Only present when format is activated.

Initialization Status:

Displays the result of format initialization:

• No problems reported — Shown with a green checkmark when initialization succeeded
• Failure list — If initialization encountered errors, they are listed here with details

Common initialization failures include:

• Invalid format configuration (malformed XML schema, invalid ASN.1 definitions)
• Missing referenced schemas or data dictionaries
• Data dictionary compilation errors
• Memory allocation failures for large format definitions

Actions:

• Restart — If an Activation digest is displayed, a Restart button appears in the header. Clicking this opens a confirmation dialog, then restarts the format instance on the current node. The restart affects only the node where triggered — other nodes running the same format are unaffected. The format transitions through shutdown, then startup states.

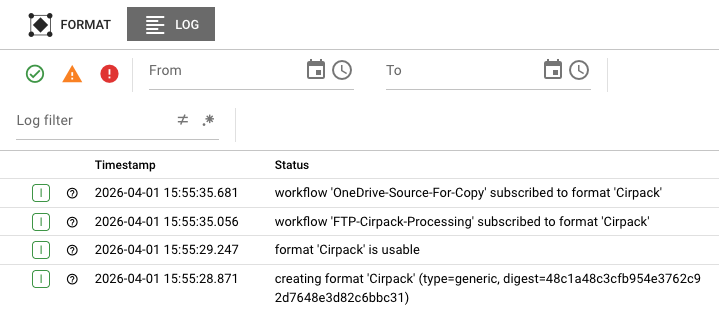

Log Tab

The Log tab displays the runtime log for this specific format instance. This is the same log that would be written to disk on the cluster node, accessible here without needing SSH access to the server.

Log entries include:

• Timestamps for each event
• Severity levels (DEBUG, INFO, WARN, ERROR)
• Format initialization events
• Schema loading and validation messages
• Compilation errors for complex formats (Data Dictionary, ASN.1)
• Runtime parsing/serialization errors

Use the log to troubleshoot:

• Schema validation failures
• Data dictionary compilation errors
• Memory issues during format loading
• Runtime parsing errors

Real-Time Updates

The log view updates automatically as new entries are written. When troubleshooting an active issue, keep the Log tab open to see events as they happen.

Format States

Formats can be in one of several states, shown as colored badges in the header:

Active States (Green)

State	Description
USABLE	Format is initialized and ready for use by processors
UNUSED	Format is initialized but not currently being used by any processor
USED	Format is initialized and actively being used by one or more processors

Error States (Red)

State	Description
UNUSABLE	Format failed to initialize and cannot be used

When a format enters the UNUSABLE state, check the Initialization Status section and the Log tab for failure details. Common causes include:

• Schema validation errors
• Missing dependencies (referenced schemas, data dictionaries)
• Configuration syntax errors
• Resource exhaustion (memory, file handles)

Common Tasks

Checking Format Health

1. Select the Formats category in the Engine State left panel
2. Look for formats with error (red) icons
3. Click the format name to see cluster nodes running it
4. Click a specific node to view detailed state

Investigating Initialization Failures

1. Navigate to the format in the Engine State view
2. Check the Initialization Status for specific error messages
3. Switch to the Log tab and look for ERROR-level entries
4. Common causes:
   • Schema file not found or inaccessible
   • XML schema validation errors
   • ASN.1 definition syntax errors
   • Data dictionary compilation failures

Restarting a Format

1. Navigate to the format instance showing issues
2. Verify the Activation digest field is present
3. Click the Restart button
4. Confirm the restart in the dialog
5. Monitor the state badge — it should transition from UNUSABLE to USABLE if the issue is resolved

Restart Scope

Restarting a format only affects the single node where you trigger it. If the same format runs on multiple nodes, each must be restarted individually if needed.

Viewing Format Logs for Troubleshooting

1. Select the format instance
2. Click the Log tab
3. Use the severity filters to focus on WARN and ERROR entries
4. Look for patterns:
   • Schema loading failures (file not found, permission denied)
   • Validation errors (malformed XML, ASN.1)
   • Compilation errors (Data Dictionary)

Format Types

Different format types have different initialization behaviors and log outputs:

XML Format

• Validates XML schema definitions on initialization
• Logs schema parsing errors and validation failures
• Shows schema compilation status in logs

ASN.1 Format

• Compiles ASN.1 definitions on initialization
• Logs compilation errors for invalid ASN.1 syntax
• May require significant memory for complex definitions

Data Dictionary Format

• Compiles data dictionary definitions on initialization
• Logs compilation errors for invalid field definitions
• Shows mapping compilation status

HTTP Format

• Validates HTTP message format configuration
• Logs header and body parsing configuration

Generic Format

• Validates generic format configuration
• Logs parsing rule compilation status

Auto-Refresh

Format State data refreshes automatically every 2 seconds while the tab is active. This ensures you see current state changes in real-time. The refresh pauses when you switch to another application tab to reduce server load.

When viewing the Log tab, new entries appear automatically as they are generated by the format.
