Deployment Issues

My deployment won't start or fails to activate.

Engine State showing DEPENDENCY_FAILURE Operations → Engine State view showing a workflow in DEPENDENCY_FAILURE state with initialization status details

Common Symptoms​

  • Deployment shows error state in Operations → Engine State
  • Initialization failures listed in the deployment details
  • Deployment hangs in transitional state (starting/stopping)
  • Validation errors when attempting to deploy

Diagnosis Checklist​

1. Check Validation Errors​

Upon deployment to Cluster the Config Server runs validations on the Deployment itself. Problems are pointed out, if any:

  1. Go through the list of issues.
  2. Click on each to navigate to the problem area
  3. Review any errors or warnings

Common validation failures:

  • Missing required fields in Assets
  • Invalid references to other Assets
  • Incoherent workflows
  • More

2. Verify Required Assets​

Deployments usually need:

Asset TypePurposeCheck
WorkflowsAt least one workflow to executeConfirm workflows are saved and valid
Environment AssetsRuntime configuration valuesVerify all ${lay:VAR} references have matching Environment Assets
Secret AssetsCredentials and sensitive dataCheck all secret references exist in Secret Resource Asset

3. Check Environment Variables​

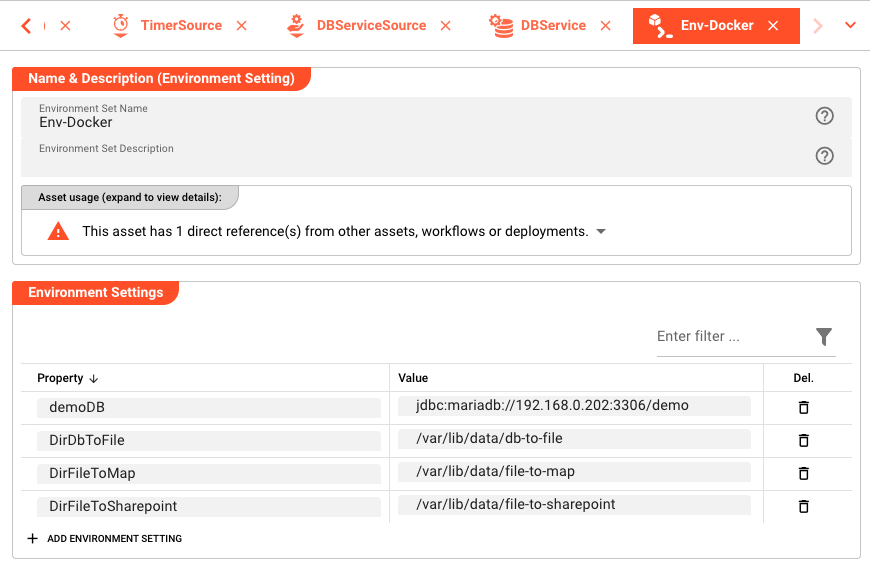

Environment Asset configuration Project view showing an Environment Asset with variable definitions (Env-Docker with database and directory paths)

If your Assets use ${lay:VAR_NAME} syntax:

  1. Navigate to Project → Assets → Environments
  2. Verify an Environment Asset exists with matching variable names
  3. Ensure the Environment Asset is included in the deployment

4. Review Secrets Variables​

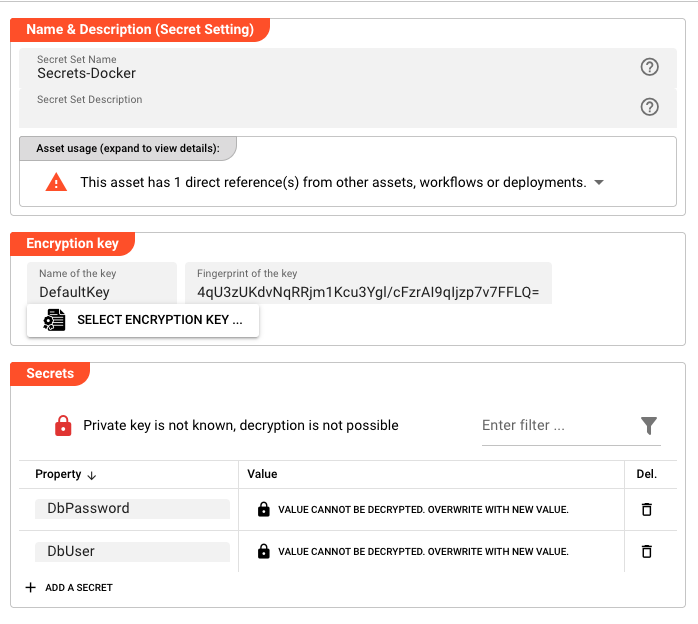

Secret Storage view Project → Assets → Secret Storage showing Secrets-Docker asset with encrypted DbPassword and DbUser credentials

For Assets referencing secrets:

  1. Go to Project → Assets → Resources → Secrets
  2. Verify a Secrets Asset exists with matching variable names
  3. Ensure the Secret Asset is included in the deployment

Common Error Scenarios​

Error: "missing environment variable name"​

Cause: An Environment Asset has an entry without a variable name defined.

Resolution:

  1. Navigate to Project → Resources → Environments
  2. Open the Environment Asset mentioned in the error
  3. Check each entry and ensure all variables have a name filled in
  4. Remove any empty entries or add the missing variable names

Error: "asset has no valid name"​

Cause: An asset is missing a name or has an invalid name (e.g., contains special characters or is empty).

Resolution:

  1. Go to Project view
  2. Look for assets with red error indicators
  3. Open each problematic asset and check the Name field
  4. Enter a valid name (alphanumeric characters, underscores, and hyphens allowed)

Error: "asset uses a reserved name '%1'"​

Cause: An asset is using a reserved keyword as its name.

Resolution:

  1. Identify the asset with the reserved name from the error message
  2. Open the asset in the Project view
  3. Change the name to something that is not a reserved keyword

Error: "cyclic inheritance relationship for asset %1"​

Cause: Assets inherit from each other in a circular chain (e.g., Asset A inherits from Asset B, which inherits from Asset A).

Resolution:

  1. Identify the asset mentioned in the error message
  2. Review the inheritance chain by checking each asset's Base Asset or parent reference
  3. Break the cycle by changing one asset to inherit from a different parent
  4. Alternatively, remove the inheritance relationship if not needed

Still Having Issues?​

If the deployment still won't start:

  1. Check the logs: Operations → Engine State → select deployment → Log tab
  2. Review alarms: Operations → Alarm Center for system-level issues
  3. Verify cluster health: Operations → Cluster → Nodes for node status
